Laboratorial ultra-high temperature sterilizer
Laboratorial ultra-high temperature sterilizer (UHT) is a tubular sterilizer specially designed for laboratories of universities, scientific research units and R & D centers of production units to obtain test data. It integrates preheating, sterilization, cooling and filling, fully simulates the actual production situation of the production workshop and truly reflects the production data in the laboratory. Online homogenization and aseptic filling are optional.
Main functions: original formula determination / formula renewal, taste screening, color evaluation, stabilizer / emulsifier application, shelf-life test, making samples for customers
Applicable products: milk, juice, condiments, additives, tea drinks and other drinks and all kinds of similar heat sensitive liquids are homogenized and pasteurized, high temperature sterilized, ultra-high temperature sterilized.
main features
1. Micro mobile, covering only 2-3 square meters, with only tap water and electricity for peripherals
2. Full simulation of industrial production, accurate experimental data, can be directly enlarged to industrial production
3. Automatic control, high degree of automation, reflecting the world’s cutting-edge control technology and machinery manufacturing technology
4. Real time PID constant temperature control technology, accurate temperature control, temperature control accuracy ± Zero point five Temperature
5. The process parameters can be set directly on the control panel, read the changes of parameters in real time, and intuitively understand the working condition of the system
6. Connected with computer, test data can be printed, recorded online, downloaded and permanently saved
7. The system has built-in superheater, which can be equipped with ice water machine and online homogenization and aseptic filling. The equipment is compact and self-contained
8. Accurate simulation of blending, homogenization, aging, pasteurization, high-temperature sterilization, ultra-high temperature instantaneous sterilization, aseptic filling and other processes
9. The equipment is equipped with touch screen and PLC program control, which can dynamically reflect various parameters of the product, such as temperature, flow and so on. It is easy and flexible to operate
technical parameter
1. Standard capacity: 20L / h (flow 10-40l adjustable), minimum experimental capacity is 3-5l, other capacity can be customized according to customer requirements
2. Sterilization temperature: up to 150 ℃
3. Sterilization time: 5S, 15s, 30s (20L / h), customized according to actual needs
4. Filling temperature: 20-90 ℃
5. Online SIP has
6. Online CIP: 1000L / h
7. Maximum pressure 10 bar
8. Online filling optional
9. Online homogenization function optional (pre homogenization / post homogenization)
10. External dimension (length, width and height): 1300 × 850 × 1700mm
11. Maximum power not more than 12KW, three-phase 380V

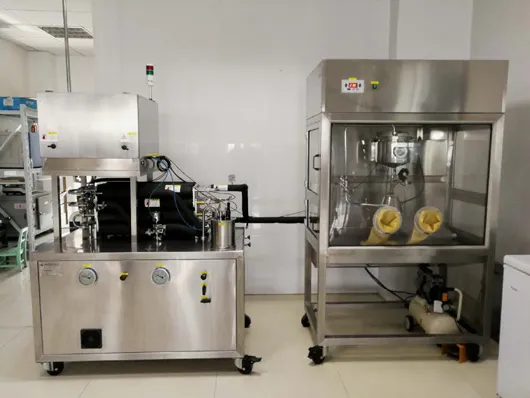

Super clean filling chamber the filling chamber of this system is installed behind the UHT sterilizer for filling of sterilized materials, which is an independent working unit. The system is equipped with jacketed buffer tank, ozone generator, solenoid valve, single end filling valve and so on, which makes the filling process easy to operate. The continuous filling can be realized only by foot switch and hand-held packing material. The built-in single head rotating cover device is optional, which is used for mass production of samples.
