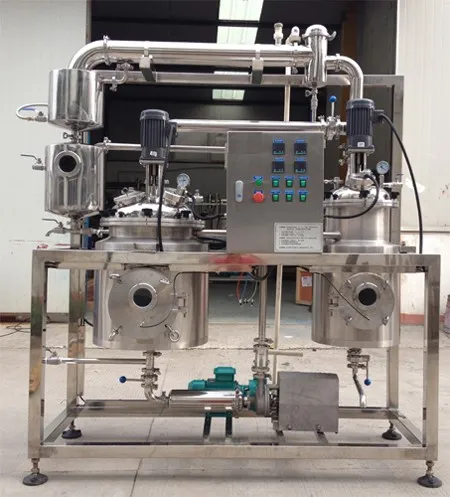

Multi function extraction and concentration equipment
The multi-functional extraction and concentration unit is applicable to the extraction of aromatic oil components and the recovery of organic solvents in the industries of traditional Chinese medicine, plant, animal, food, beverage and chemical industry
The multi-functional extraction and concentration unit adopts dynamic extraction and concentration, ultrasonic extraction, with short time and high efficiency; the equipment adopts electric heating mode, with high degree of automation, equipped with CIP cleaning head in the tank, which conforms to GMP pharmaceutical standards. The equipment is mainly applicable to the research and development of universities, research institutes, enterprises and institutions laboratories and small and medium-sized trial production lines.
Jc-10 multi-function extraction and concentration unit equipment features:
Effective volume is 10 -, 500 L
The unit has the advantages of excellent material selection, high efficiency, convenient operation and high degree of automation.
Built in electric heater without external heating source.
The extraction and concentration temperature can be set by yourself.
The side cover is easy to open and easy to clean.
Main accessories: extraction tank, concentration tank, mixing motor, condenser, cooler, oil-water separator, feed port, heater, filter, temperature controller, discharge valve, rack, safety valve, control cabinet, material pump, vacuum pump, etc.
Internal and external weld polishing 300 mesh, three-layer insulation, open structure.
High quality SUS304 material, 2b stainless steel plate.
Schneider and OMRON brands are used for electrical appliances.
| Model | JC-10 | JC-20 | JC-30 | JC-50 | JC-100 | JC-200 |
| Capacity（L） | 10 | 20 | 30 | 50 | 100 | 200 |
| Heat power（KW） | 6 | 8.8 | 12 | 20 | 30 | 40 |
| interlayer pressure(Mpa) | 0.3-0.4 | |||||
| Inner tank pressure（Mpa） | 0.09 | |||||
|
Alcohol extraction temperature （℃） |
≤85 | |||||
|
Water extraction temperature （℃） |
≤100 | |||||
|
Concentration temperature （℃） |
40-80 | |||||
|
Condensation area （M2 ） |
0.22 | 0.5 | 0.72 | 0.72 | 0.95 | 1.15 |
|
Heating area （M2 ） |
0.21 | 0.28 | 0.33 | 0.50 | 0.98 | 1.38 |
| Vacuum（KW） | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.5 |
| Vacuum （Mpa） |
-0.05—0.09 | |||||
