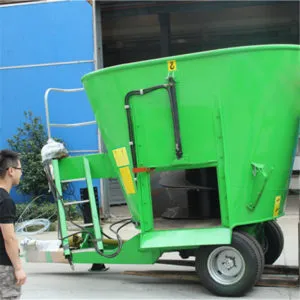

The new TMR feed mixer design produced by our factory is reasonable, at the bottom of the trough made of high quality alloy steel, suitable for operation in harsh environment, safe and reliable, the production of unique cutting blade with high wear-resistant materials, auger blade material uses the high quality alloy steel, thus greatly improving the service life of the product. This product is flexible and convenient to operate, safe and reliable, can be directly silage and bale, straw and other fibrous feed into the mixer chopping, mixing, stirring speed, stirring time of each batch of feed cutting for about 30 minutes, according to the volume of the box body is different, each day feed mixer for 200-2000 cows feeding, alternative more than 20 workers, which saves labor cost and feed efficiency and improve the quality of!
1. mixing system.
This machine is composed of one or two auger screw auger, divided into left or right, cut in the mixed stirring, the material from both ends of the box body in all directions at the same time to the middle position of the rotary cutting mixer mixing auger screw body each helical guide with a knife, cut the work center and the fixed tooth feed mixer line position, through all kinds of fibrous fodder, straw cutting and mixing, grinding and mixing so as to achieve the effect of total mixed ration feeding evenly.
2. discharging system.
The discharging gate control of hydraulic cylinder, fixed bearing, sliding bearing, linkage feeding baffle is arranged in a hydraulic cylinder reciprocating shaft, can open or close the discharge block material, material is provided with a high strength magnetic iron plate to complete the task, the user can also optional discharging conveyor, a discharge door according to the user requirements in the left or right.
3. weighing and measuring system.
Three by the bridge type weighing sensor and the weighing display controller, the system consists of 220V power supply through the three range of bridge type weighing sensor delivers the signal to the display, display the gross and net weight, weight change and peak zero output, complete feed ratio and measurement, and has overload alarm function.
4. tire.
Adopt all vacuum imported tires, suitable for all kinds of terrain operations, single tire weighing rate of 4.5 tons.
5. speed reducer.
The use of gear box reducer, is not easy to bad, high and low speed conversion effect is good, reducer national UNPROFOR, manufacturers directly to the home warranty, replacement, no worries.
6. drive shaft.
The transmission shaft with clutch protector can automatically stop rotating when the stirring voltage is too low or the mixing is difficult, and the reducer is protected.
7. cut up the blade.
The blade is made of 1 cm thick high manganese steel. It is hard, wearable and hard to damage. It saves the customers greatly and improves the service life.



Parameters Model	JC-5	JC-7	JC-9
Capacity(cbm)	5	7	9
Auger(unit)	1	1	1
Blade(piece)	5	7	10
Blade type	Wear-resistant metal serrated cutter	Wear-resistant metal serrated cutter	Wear-resistant metal serrated cutter
RPM	26	26	26
Power(kw)	35	45	65
Weighing system	4 sensors, LED digital display	4 sensors, LED digital display	4 sensors, LED digital display
Size(mm)	3600*1700*2200	3760*1860*2460	4060*2160*2780
Weight(km)	1600	2000	2700
