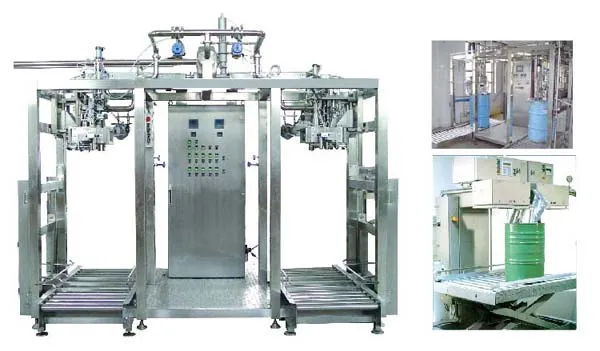

Bag & barrel Aseptic filling machine
The aseptic filling machine has its own aseptic room, which uses steam to carry out three-point spray sterilization on the bag mouth, filling head and filling room, so as to ensure the aseptic requirements of the filling process. The packaging bag adopts aluminum plastic composite aseptic bag, and the aseptic bag mouth is sterilized, opened, filled and sealed in aseptic environment. It is especially suitable for aseptic filling and filling of fruit juice, jam, vegetable juice, beverage juice, pharmaceutical and other industries.
| Model | JC4000AS(1heads) | JC8000AS(2heads) |
| Capcity(L/H) | 1000-4000 | 4000-8000 |
| Power(kw) | 1 | 1 |
| Steam Consumption(0.1mpa)(kg/h) | 20 | 40 |
| Compress air consumption(8kg/cm2) | 20 | 40 |
| Max weight(kg) | 2000 | 2000 |
| Weighing error | ±1% | ±1% |
| Dimensions(mm) | 1600*1100*3000 | 4100*4400*3900 |
