The best of the milk pasteurizer, homogenizer and milk filling machine

The small scale micro-ultra-high temperature sterilizer is a domestic high-end experimental sterilization equipment developed by our company using a number of technologies, breaking the long-term monopoly of European, American and Japanese brands in China. It effectively solves the disadvantages of waste time, waste and waste power in the development of new beverage products, builds a bridge from laboratory to industrial production, and accelerates the transformation of scientific research achievements into productivity.
Applicable products: milk, juice, condiments, additives, tea drinks, beer and other drinks and various similar liquid products.

Function: This equipment can be used for the determination/update of the original formula of fluid products, taste screening, color evaluation, stabilizer/emulsifier application, shelf life test and batch sample production.
main features
1. Miniature mobile, covering only 2-3 square meters, and the peripheral equipment only needs water and electricity
2. Fully simulate industrial production, the experimental data is accurate, and can be directly scaled up to industrial production
3. Automatic control, high degree of automation, reflecting good control technology and machinery manufacturing technology
4. Real-time PID constant temperature control technology, accurate temperature control, temperature control accuracy ± 0.5 ℃
5. The process parameters can be set directly on the control panel, and the changes of various parameters can be read in real time to intuitively understand the working conditions of the system
6. Connected with computer, test data can be printed, recorded online, downloaded and permanently saved
7. The built-in superheated water generator of the system can be equipped with ice water machine and online homogenization and aseptic filling. The equipment is compact and self-contained
8. Precise simulation of mixing, homogenization, aging, pasteurization, high-temperature sterilization, ultra-high-temperature instantaneous sterilization and aseptic filling and other processes
Technical parameters
1. Standard capacity: 20L/H (flow rate 10-40L adjustable), the minimum experimental capacity is 3~5L, and other capacities can be customized according to customer requirements
2. Sterilization temperature: normal temperature – 150 ℃
3. Sterilization time: 5S, 15S, 30S (20L/H), can be customized according to actual needs
4. Filling temperature: 20-90 ℃
5. Online SIP has
6. Online CIP has: 400L/H
7. Maximum pressure 10bar
8. Optional for online filling
9. Online homogenization function is optional (pre homogenization/post homogenization)
10. Power 10KW, 3-phase power supply, 380V, connected to neutral and ground
11. Overall size 1690 (H) × 1150（L） × 910（W）mm

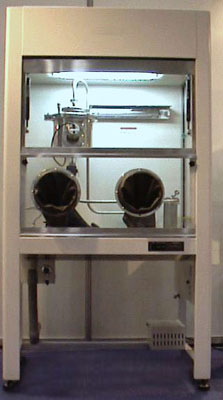

CT-20 sterile filling room
